overview

misumi frame assembly

detail

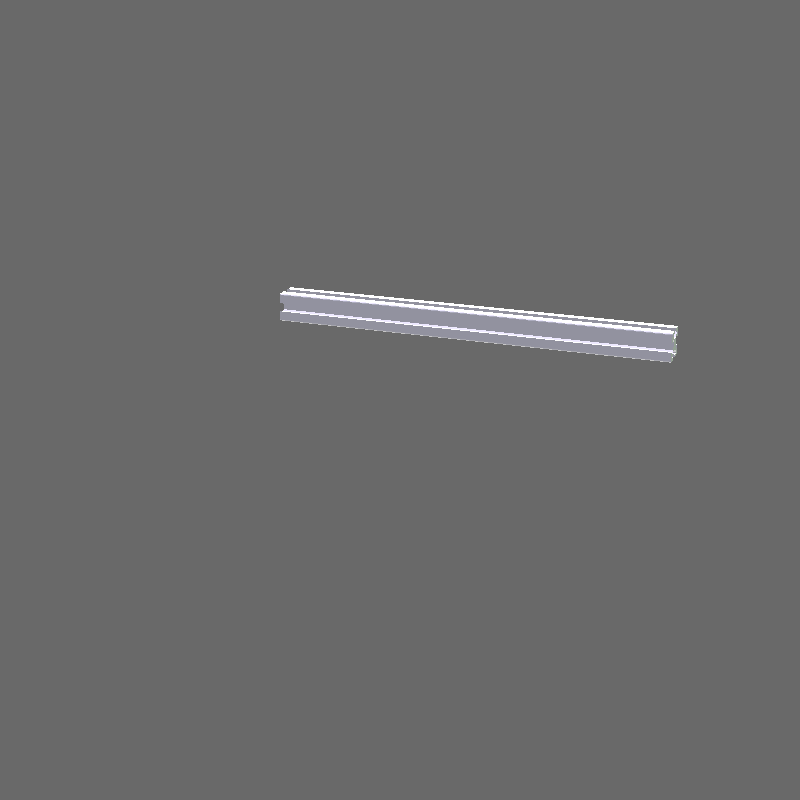

step 0

name	quantity
frame_5_series/HFS5-2020-280	1

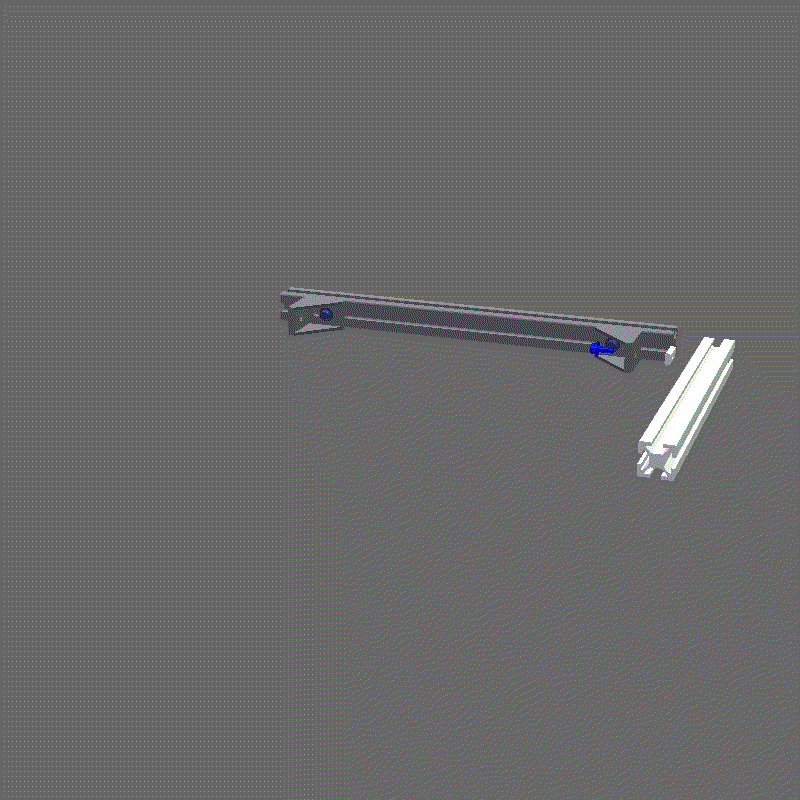

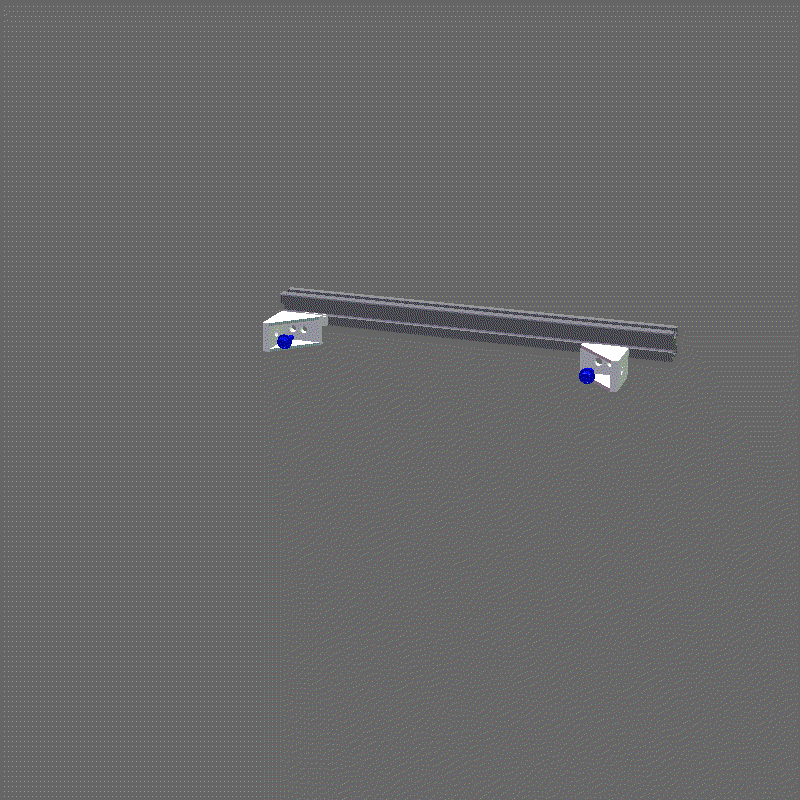

step 1

name	quantity
frame_5_series/SHNTP5-4	2
frame_5_series/HBLFSN5-4	2
m4_screw/NSET4-12	2

step 2

name	quantity
frame_5_series/SHNTP5-4	1
frame_5_series/HFS5-2020-200	1
m4_screw/NSET4-12	1

step 3

name	quantity
frame_5_series/SHNTP5-4	1
frame_5_series/HFS5-2020-200	1
m4_screw/NSET4-12	1

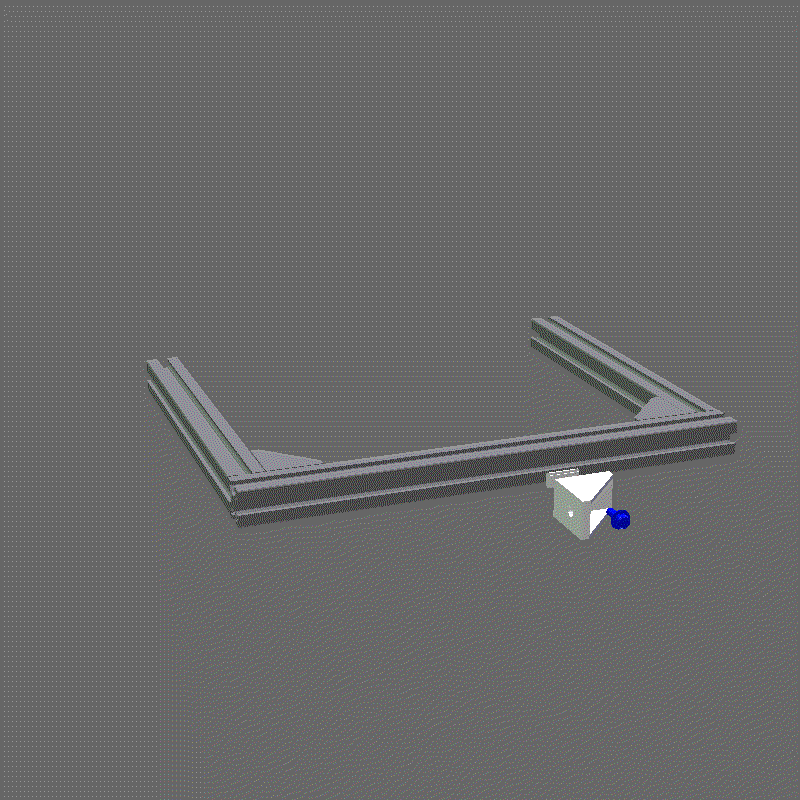

step 4

name	quantity
frame_5_series/SHNTP5-4	1
frame_5_series/HBLFSN5-4	1
m4_screw/NSET4-12	1

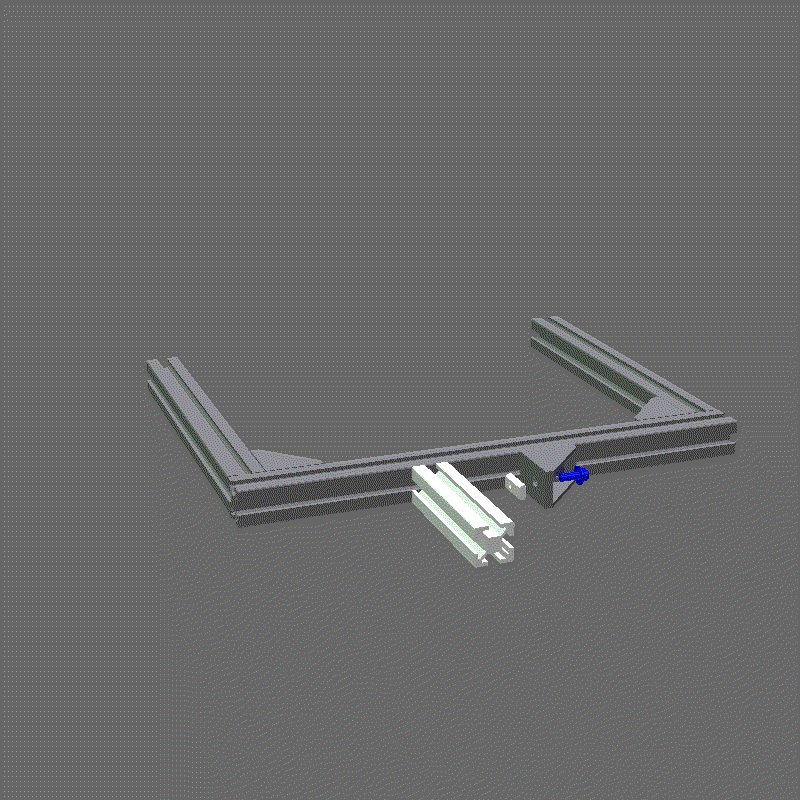

step 5

name	quantity
frame_5_series/SHNTP5-4	1
m4_screw/NSET4-12	1
frame_5_series/HFS5-2020-80	1

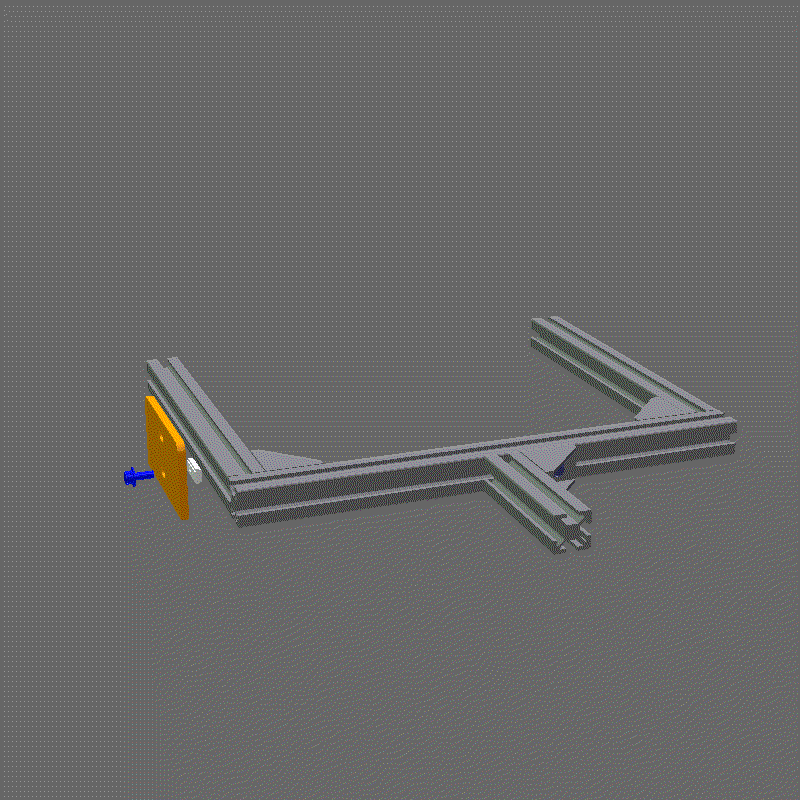

step 6

name	quantity
frame_5_series/SHNTP5-4	1
espresso_frame_fabrication_parts/move_connect_plate	1
m4_screw/NSET4-12	1

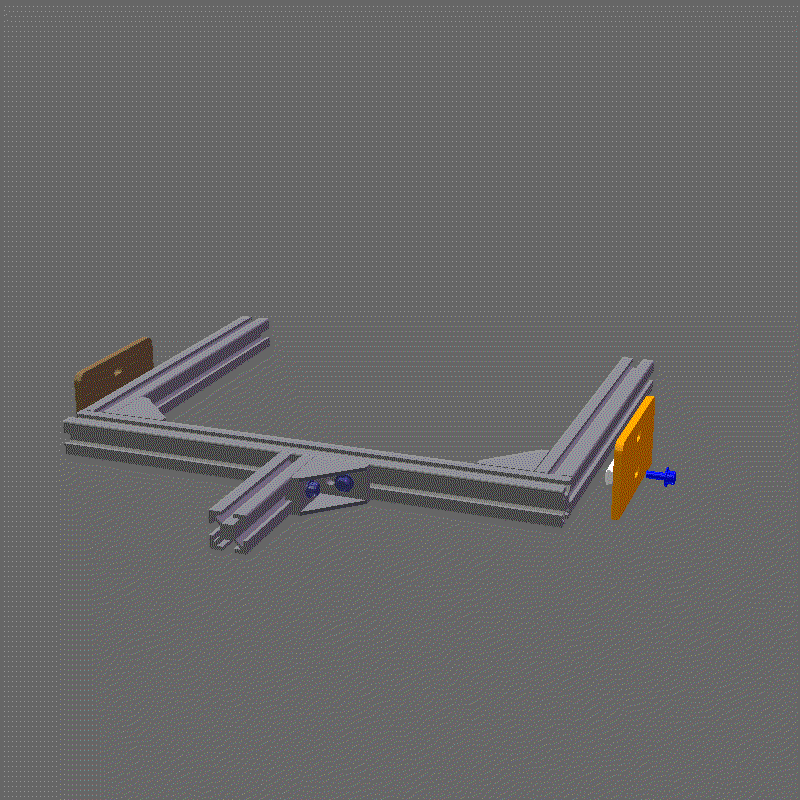

step 7

name	quantity
frame_5_series/SHNTP5-4	1
espresso_frame_fabrication_parts/move_connect_plate	1
m4_screw/NSET4-12	1
